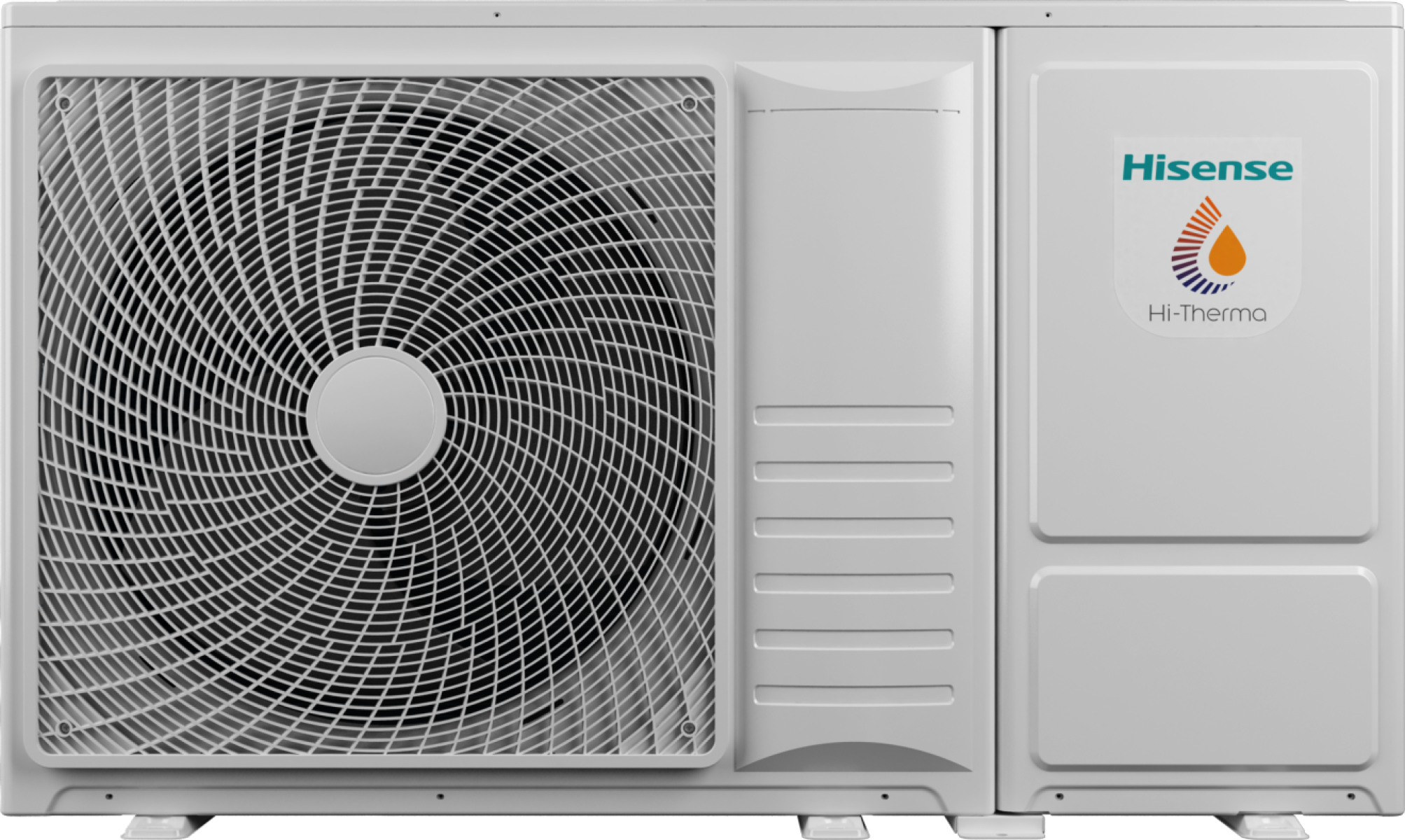

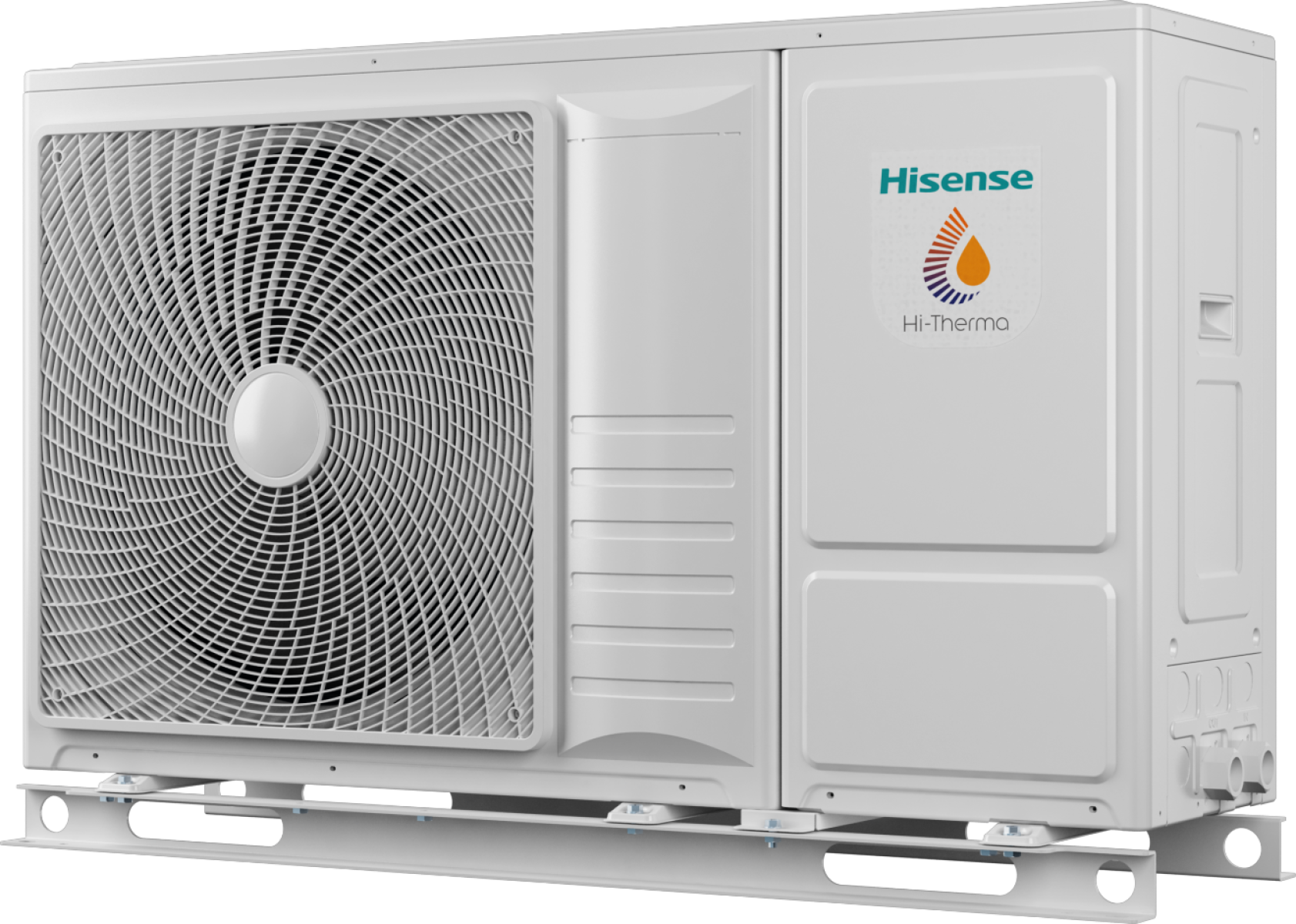

Vazduh-voda Toplotna pumpa za grejanje prostora, Monoblok, 4.4 kW, R32 AHZ-044HCDS1
- Vrsta jedinice : Spoljna
- Split sistem : Kompaktna (monoblok)
- Wi-Fi upravljanje
- Širina proizvoda : 1270 mm
- Visina proizvoda : 815 mm
- Dubina proizvoda : 340 mm
- Šifra proizvoda : 20010607
Specifikacija A SADA, TEHNIČKI DEO...
Opšte
Vrsta aparata:
Heat pump for ambient heating
Split sistem:
Kompaktna (monoblok)
Layout:
Vazduh-voda
Vrsta jedinice:
Spoljna
Energetski razred:
A+++
Outdoor unit code:
20010607
Outdoor unit width:
1270 mm
Outdoor unit height:
815 mm
Outdoor unit depth:
340 mm
Outdoor unit packing width:
1400 mm
Outdoor unit packing height:
890 mm
Outdoor unit packing depth:
440 mm
Linija:
Hi-Therma
Upravljanje
Compressor operation:
Variable speed of compressor
Karakteristike
Cooling mode:
Active cooling
Wi-Fi upravljanje:
Da, integrisano
Tihi rad:
Da
Daily - nightly operating mode:
Da
Swimming pool heating function:
Da
Solar panels function:
Da
Smart grid ready function:
Da
Ios, Android applications for home control:
Da
Program za odmor Go`n`Save:
Da
Tehnički podaci
Heating capacity at A7/W35 (min. - max):
7 kW
Heating capacity A7/W35:
4.4 kW
Heating capacity at A7/W35:
4.4 kW
COP A7/W35:
3.26
Heating capacity at A7/W55:
4.4 kW
COP (Coeff. Of performance) at A7/W55:
3
Heating capacity at A-7/W55:
4 kW
COP (Coeff. Of performance) at A-7/W55:
1.97
Rashladno sredstvo (gas):
R32
Sound pressure level - outdoor unit:
61 dB(A)
Količina flurovanih gasova:
1.17 kg
Energy Efficiency class - average climate W35:
A+++
Energy Efficiency class - average climate W55:
A++
Power input at A7/W35:
0.86 kW
Power input at A7/W55:
1.47 kW
Cooling capacity at A35/W7:
4.4 kW
Cooling capacity at A35/W18:
5.601 kW
EER at A35/W7:
4
EER at A35/W18:
5.601
Pdh average climate W35:
4.61 kW
SCOP average climate W35:
5.17
Ns average climate W35:
204 %
Annual energy consumption QHE average climate W35:
1830 kW
Pdh average climate W55:
4.09 kW
SCOP average climate W55:
3.47
Ns average climate W55:
136 %
Annual energy consumption QHE average climate W55:
2425 kW
Sound pressure at normal mode in cooling:
47 dB(A)
Sound power at normal mode in cooling:
61 dB(A)
Sound pressure at quiet mode in cooling:
40 dB(A)
Sound power at quiet mode in cooling:
55 dB(A)
Sound pressure at night mode in cooling:
36 dB(A)
Sound power at night mode in cooling:
50 dB(A)
Sound pressure at normal mode in heating:
47 dB(A)
Sound power at normal mode in heating:
61 dB(A)
Sound pressure at quiet mode in heating:
40 dB(A)
Sound power at quiet mode in heating:
55 dB(A)
Sound pressure at night mode in heating:
36 dB(A)
Sound power at night mode in heating:
50 dB(A)
99 dB(A)
Space heating - outdoor temperature range (°C)(DB)):
-25-35
Space heating - outlet water temperature range (°C):
15-60
Space cooling - outdoor temperature range (°C(DB)):
5-46
Space cooling - outlet water temperature range (°C):
5-22
DHW - outdoor temperature range (°C(DB)):
-25-40
DHW - water temperature range (°C):
30-55
DHW with E-heater - water temperature range (°C):
30-75
SWP - outdoor temperature range (°C(DB)):
-25-40
SWP - water temperature (°C):
24-33
Water flow rate IW30/OW35:
0.77 m³/h
Water inlet pipe diameter ("):
G 1 female
Water outlet pipe diameter ("):
G 1 female
Water shutdown valve diameter ("):
G 1 female
Širina proizvoda:
1270 mm
Visina proizvoda:
815 mm
Dubina proizvoda:
340 mm
Širina pakovanog proizvoda:
1400 mm
Visina pakovanog proizvoda:
890 mm
Dubina pakovanog proizvoda:
440 mm
Neto težina aparata:
88 kg
Bruto težina aparata:
104 kg
Napon:
220-240 V
Frekvencija:
50 Hz, 60 Hz
Šifra proizvoda:
20010607
BAR kod:
6943634803323
